$309.95
Product Specifications | No Further Discounts Apply |
Part # | AUD-1024 |
Year | 1967 1968 |
Application | Camaro |
Color | See Photo |
Availability | In Stock, Available This means the part is in our building ready to ship! |

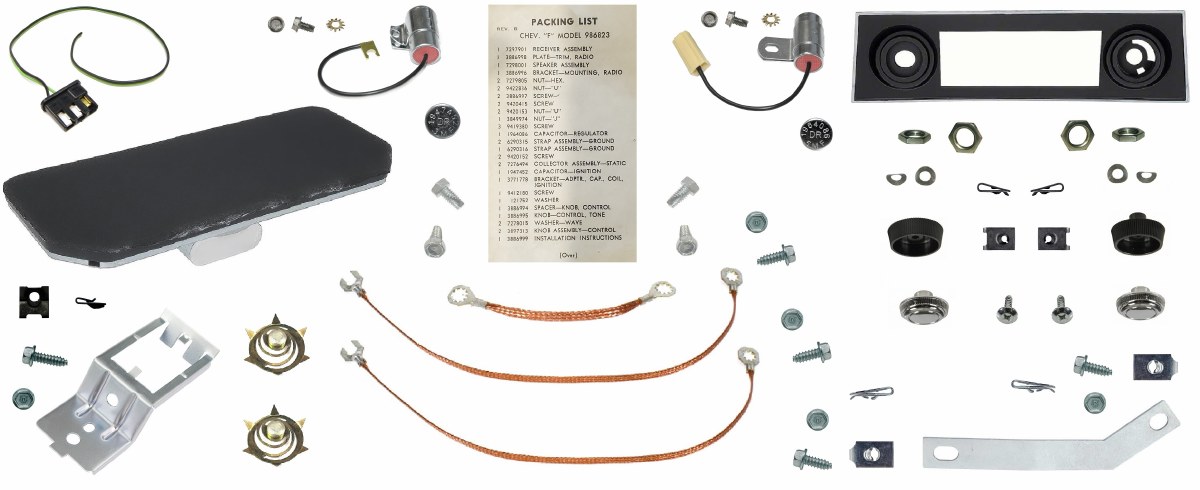

Description | 1967-1968 Camaro Radio & Speaker installation kit. This is the very same kit you would have received with a new radio kit from GM back in the day. The only thing not included is the actual AM or AM/FM radio. We assembled this kit with the correct parts and fasteners to properly install your radio. The kit includes the dash speaker GM# 7298001, Speaker pigtail assembly (requires to be soldered) Speaker mounting bracket, 3849974 speaker J-nut, speaker mounting screw GM# 9419380, Radio face plate GM# 3886998, Radio shaft thin nuts (2) GM# 7279805, Tone control knob GM# 3886995 & Selector spacer knob GM# 3886994, Thin wave washers (2) GM# 7278015, Chrome radio knobs (2) GM# 3897313, Radio body mounting J-nut (2) GM# 9422836, Radio mounting Phillips head screws, GM# 3886997, Radio mounting bracket GM# 3886996, Radio mounting bracket J-nuts (2) GM# 9420153, Screws for radio mounting bracket 9420415, Radio capacitor assemblies GM# 1947452 & 1964086, Toothed lock washers (2) GM# 121752, Mounting screws (2) GM# 9412180, Radio ground straps (longer)(2) GM# 6290315, mounting screws (2) GM# 9420415, Radio ground strap (short) (1) GM # 6290316, Screw to mounting strap to firewall and frame (2) GM# 9420152. The 1967 Camaro Factory Assembly Manual shows installation instructions in UPC U63 A1-A6. Applications: 1967-1968 Camaro |
Downloads | Factory Assembly Instruction Manuals |
