1969 Camaro Spring Ring Battery Cable & Installation Hardware Kit BB 396 427

$199.95

Part # EGP-2720

In Stock Now
In Stock
Add to cart
Product Specifications No Further Discounts Apply
Part # EGP-2720
Year 1969
Application Camaro
Color Black
Availability In Stock, Available — This means the part is in our building ready to ship!

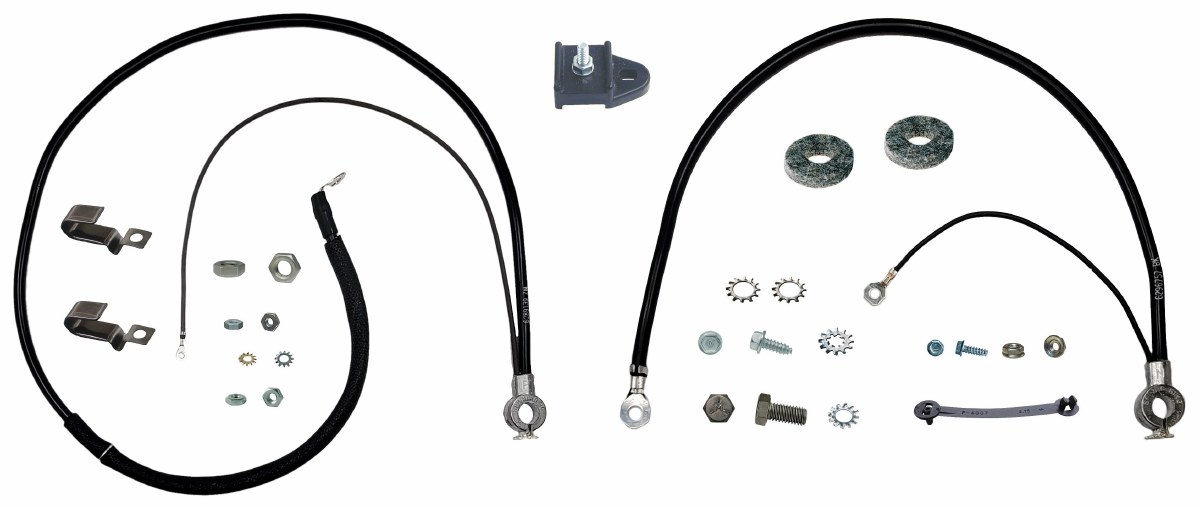

Description 1969 Camaro BB 396 427 Yenko COPO ZL-1 "Assembly Line Correct" battery cable kit with mounting hardware. This kit includes the following: New positive Spring Ring battery cable GM# 6296780 AN & negative Spring Ring battery cable GM# 6296757 BK. Battery junction block that mounts on the radiator core support behind the battery GM# 3882795. The small 12 volt wire runs from the positive battery cable to the junction block and over to the horn relay, supplying power to the headlight harness via the horn relay. You will also receive our correct battery cable installation kit. Kit includes battery terminal felt washers GM# 3743360 x 2, junction block nut GM# 3759924, serrated ground washer GM# 174916, screw with "D" head marking GM# 9420415 for passenger fender negative battery cable, positive battery cable nut GM# 124829, serrated washer at the starter GM# 138489, starter solenoid wiring nut GM# 120622, Toothed washer GM# 121752, solenoid nut GM# 120614, positive battery cable plastic strap GM# 138479. This strap that mounts to the passenger side inner fender well GM# 3830786, serrated washer for block mounted ground cable GM# 138489, ground cable at engine block bolt GM# 180118, and (2 ) positive battery cable retainers that are part of the engine assembly and mount on the passenger side of the oil pan. Assembly Line Correct fasteners for the high end restorer. You can view illustrations in the Factory Assembly Manuals in UPC 12 A4-A6 and UPC L-35 A15. Made in the USA! Applications: 1969 Camaro 396 all,  427 COPO, 427 Yenko, 427 ZL-1 or any big block engine mounted in a 1969 Camaro.
Downloads Factory Assembly Instruction Manuals

Note: This product is not eligible for discounts.
