1969 Camaro Interlock Reverse Idler Turbo 400 w/Upper & Lower Rods Complete Assembly Console Shift

$249.95

Part # TRN-1554

Currently on Back Order
Product Specifications No Further Discounts Apply
Part # TRN-1554
Year 1969
Application Camaro
Color See Photo
Availability Back Order

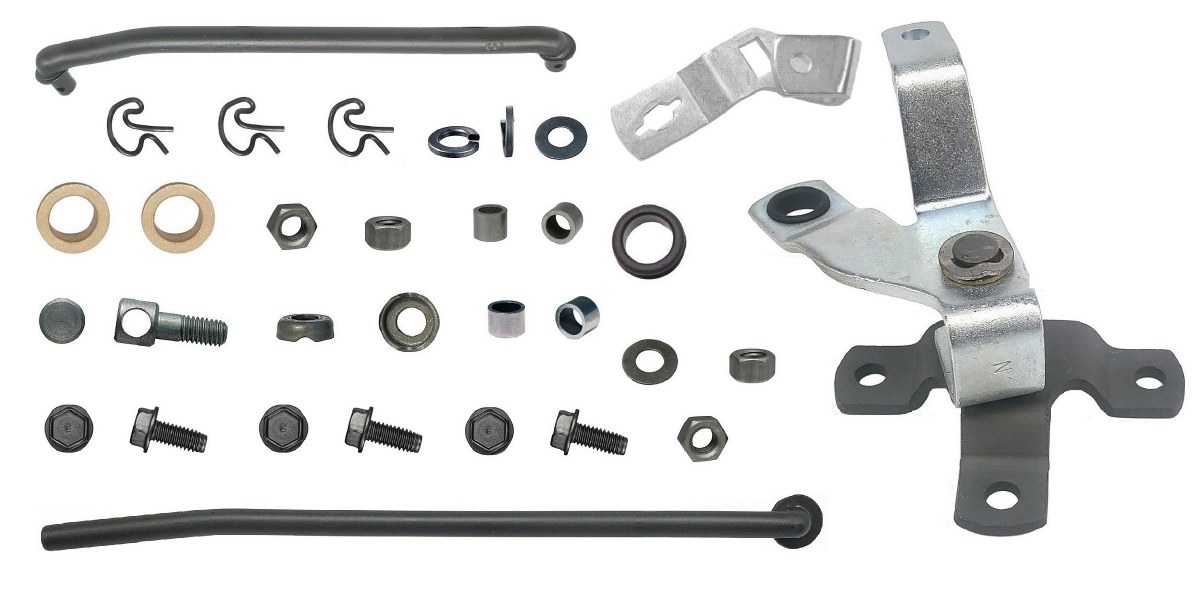

Description Complete Interlock or reverse back drive lock out assembly, for models with Turbo 400 transmission and floor shift with console. This kit gives you everything you need to install the unit on your Camaro. This kit includes the upper lock out rod GM# 3912617, lower lock out rod GM# 3914805, idler support GM# 3895291, lever assembly GM# 3895290, idler lever mounting bolts GM# 9419402 (3), idler bushings GM# 3792168 (2), retainer clip GM# 3749084 (3), lock washer GM# 103320, sleeve GM# 3852838, plate washer GM# 580379, lock washer GM# 103321, plate washer GM# 382105, idler grommet GM# 3833108, clamp, GM# 382103, swivel GM# 382104, sleeve GM# 382102, sleeve GM# 3852838, nut GM# 9418931 (2), transmission lever GM# 3950176. The 1969 Camaro Factory Assembly Manual shows an excellent illustration and installation instructions under UPC M40 A6. Applications: 1969 Camaro w/Turbo 400 & floor shift.
Downloads Factory Assembly Instruction Manuals

Note: This product is not eligible for discounts.
