1968 1969 Camaro Clutch Linkage Kit With Clutch Fork & Hardware All SB 302 307 327 350

$209.95

Part # TRN-1000A

In Stock Now
In Stock
Add to cart
Product Specifications
Part # TRN-1000A
Year 1968 1969
Application Camaro
Color Black oxide & phosphate
Availability In Stock, Available — This means the part is in our building ready to ship!

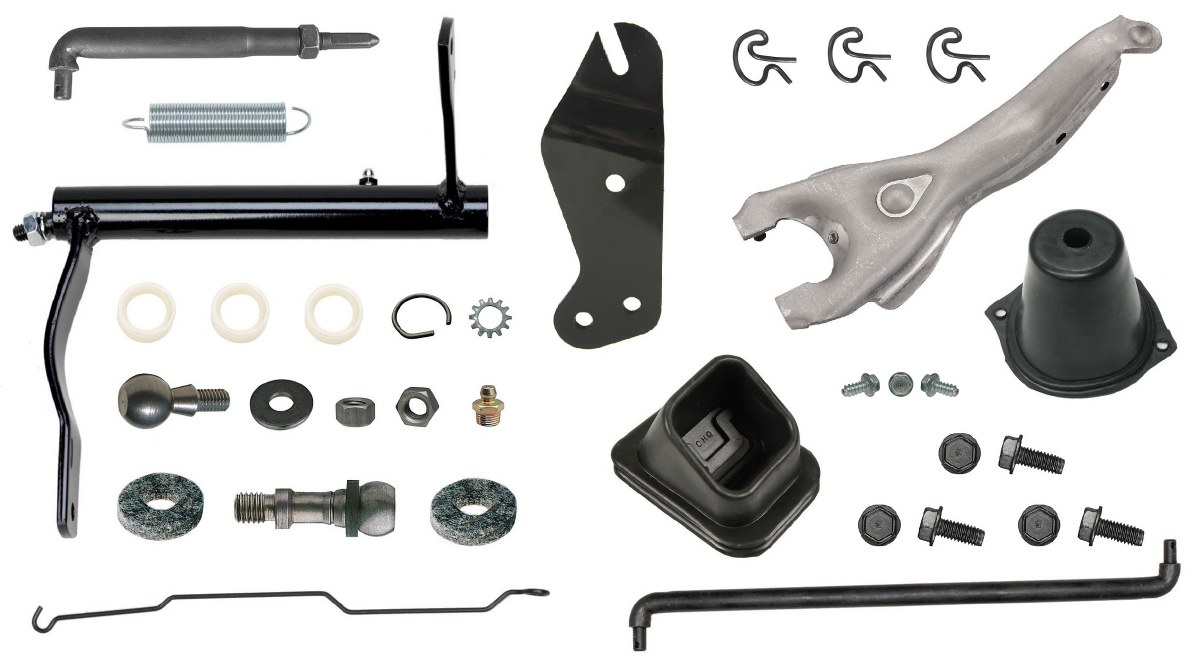

Description Small block clutch linkage kit with clutch fork and extra hardware kits. Superior quality. The kit comes complete with all our individually available technically correct components required - from pedal to clutch fork. (Clutch fork included GM# 3892632). Assembly diagram included. Superior heat treated components with correct protective finishes as original. Kit includes: Upper push rod GM# 3920262, upper rod boot GM# 3909071, upper rod boot screws GM# 9419699 (2), 3 rod clips GM# 3749084, Z bar frame side bracket GM# 3899019, Z bar bracket mounting screws (3) GM# 9420603 engine block side stud with seal GM# 3866568, frame side ball stud with nut and washer GM# 3898610, pair of bell crank felts (only one required) GM# 3743360, lower adjustable rod GM# 3849703 & GM# 3840843, clutch return spring GM# 3899021, extension wire GM# 3899022, clutch fork to bell housing rubber boot GM# 3841738, SB bell crank assembly with installed pivot kit and Zerk fitting GM# 3899013 & GM# 3998652. The Factory Assembly Manual shows an excellent diagram in UPC 7 C3. Applications: 1968-1969 Camaro, 1968-1972 Nova.
Downloads Factory Assembly Instruction Manuals
