1967 Camaro Clutch Linkage Kit All BB 396 427 454

$144.95

Part # TRN-1016B

In Stock Now
In Stock
Add to cart
Product Specifications
Part # TRN-1016B
Year 1967
Application Camaro
Color See photo
Availability In Stock, Available — This means the part is in our building ready to ship!

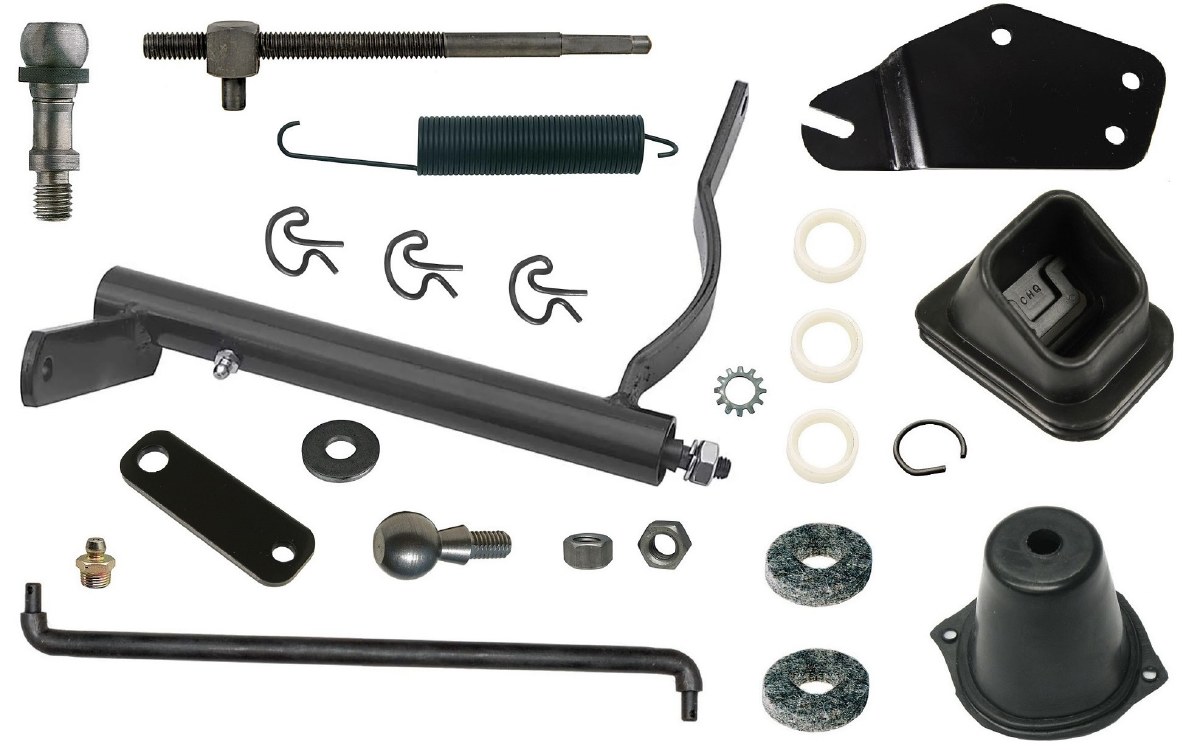

Description Big block 396 427 clutch linkage kit. Our BB kits come with all our individually available technically correct components required - from pedal to clutch fork. (Clutch fork not included). Assembly diagram included. Superior heat treated components with correct protective finishes as original. Kit includes: Upper push rod GM# 3920262, upper rod boot GM# 3909071, 3 rod clips GM# 3749084, frame side bracket GM# 3932760, block side stud with seal GM# 3866568, frame side ball stud with nut and washer GM# 3898610, pair of bell crank felts (only one required) GM# 3743360, lower adjustable rod GM# 3779202 & GM# 3840845, return spring GM# 3914896, extension GM# 3912606, clutch fork to bell housing rubber boot GM# 3841738, BB bell crank assembly with installed pivot kit and Zerk fitting GM# 3912602. The Factory Assembly Manual shows an excellent diagram in UPC L-35 A13. Applications: 1967 Camaro.
Downloads Factory Assembly Instruction Manuals
